harmonica.visualization.prism_to_pyvista

harmonica.visualization.prism_to_pyvista(prisms, properties=None)

Create a pyvista.UnstructuredGrid out of prisms

Builds a pyvista.UnstructuredGrid out of a set of prisms that could be used to plot a 3D representation through pyvista.

Parameters:

prismslist or 2d-array

List or 2d-array with the boundaries of the prisms. Each row contains the boundaries of each prism in the following order: west, east, south, north, bottom, top.

propertiesdict or None (optional)

Dictionary with the physical properties of the prisms. Each key should be a string and its corresponding value a 1D array. If None, no property will be added to the pyvista.UnstructuredGrid. Default to None.

Returns:

pv_gridpyvista.UnstructuredGrid

pyvista.UnstructuredGrid that represents the prisms with their properties (if any).

Examples

Define a set of prisms and their densities:

>>> prisms = [
...     [0, 4, 0, 5, -10, 0],
...     [0, 4, 7, 9, -12, -3],
...     [6, 9, 2, 6, -7, 3],
... ]
>>> densities = [2900, 3000, 2670]

Generate a pyvista.UnstructuredGrid out of them:

>>> import harmonica as hm
>>> pv_grid = hm.visualization.prism_to_pyvista(
...     prisms, properties={"density": densities}
... )
>>> pv_grid

Plot it using pyvista:

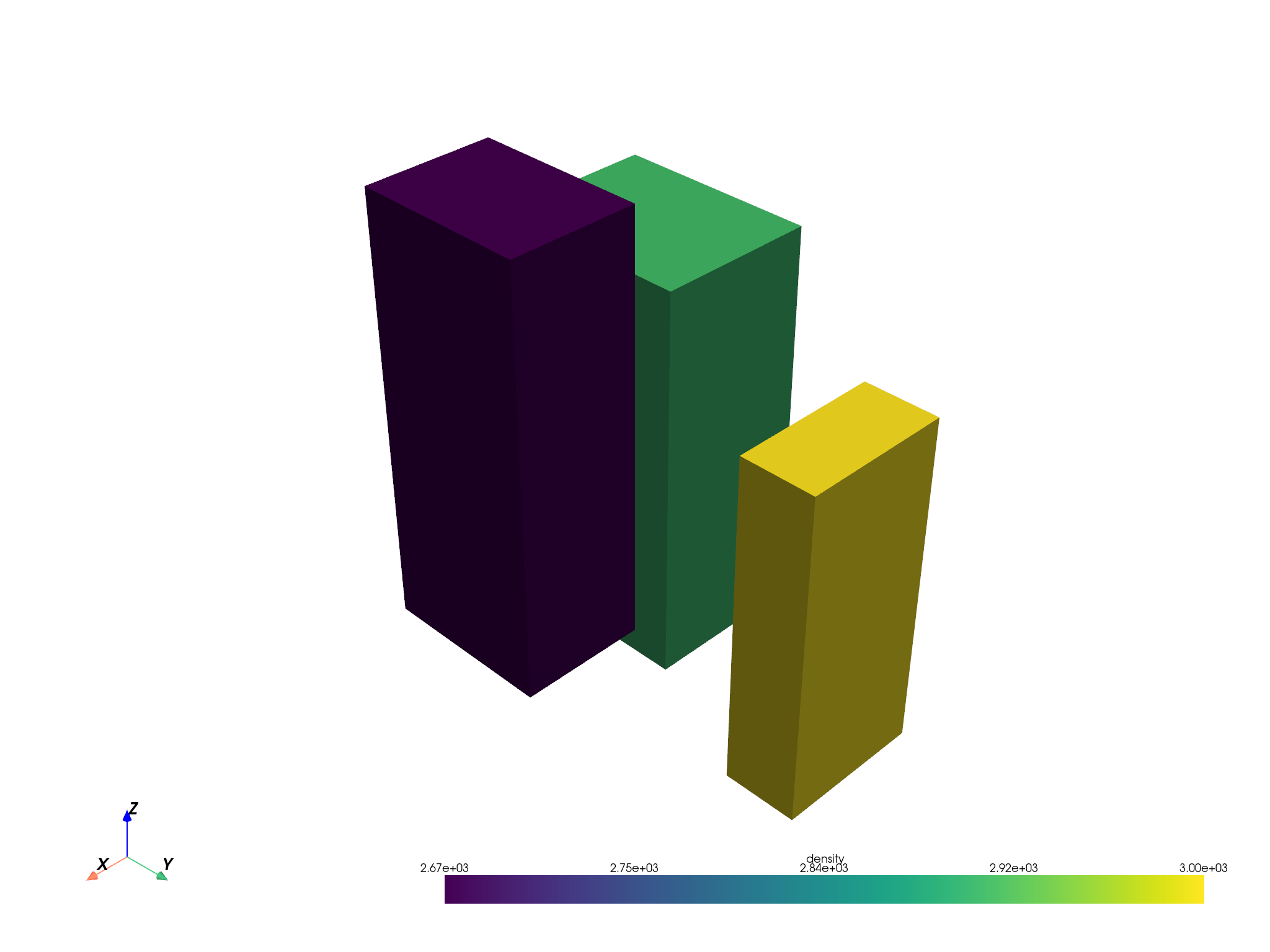

>>> pv_grid.plot()
