Normal gravity

Normal gravity#

One of the main uses for ellipsoids in geodesy and geophysics is the computation of normal gravity (usually represented by \(\gamma\)). The exact calculation and underlying assumptions are a bit different between the different types of ellipsoids.

Oblate ellipsoids#

Method boule.Ellipsoid.normal_gravity performs the normal gravity calculations. It can operate on single values:

import boule as bl

gamma = bl.WGS84.normal_gravity(latitude=45, height=50)
print(f"{gamma:.2f} mGal")

980604.35 mGal

Or on numpy array-like data (including pandas.DataFrame and xarray.DataArray):

import numpy as np

height = np.linspace(0, 1000, 10)
gamma = bl.WGS84.normal_gravity(latitude=45, height=height)
print(gamma)

[980619.77693773 980585.4934137  980551.21168081 980516.93173899
 980482.65358804 980448.3772279  980414.10265843 980379.82987947
 980345.55889093 980311.28969268]

The arrays can be multi-dimensional so we can use verde to generate a grid of normal gravity:

import verde as vd

longitude, latitude = vd.grid_coordinates(
    region=[0, 360, -90, 90], spacing=0.5,
)
gamma = bl.WGS84.normal_gravity(latitude=latitude, height=10_000)
print(gamma)

[[980142.33509235 980142.33509235 980142.33509235 ... 980142.33509235
  980142.33509235 980142.33509235]
 [980141.93808117 980141.93808117 980141.93808117 ... 980141.93808117
  980141.93808117 980141.93808117]
 [980140.7471697  980140.7471697  980140.7471697  ... 980140.7471697
  980140.7471697  980140.7471697 ]
 ...
 [980140.7471697  980140.7471697  980140.7471697  ... 980140.7471697
  980140.7471697  980140.7471697 ]
 [980141.93808117 980141.93808117 980141.93808117 ... 980141.93808117
  980141.93808117 980141.93808117]
 [980142.33509235 980142.33509235 980142.33509235 ... 980142.33509235
  980142.33509235 980142.33509235]]

Which can be put in a xarray.Dataset:

grid = vd.make_xarray_grid(
    (longitude, latitude), gamma, data_names="normal_gravity",
)
grid

<xarray.Dataset> Size: 2MB
Dimensions:         (northing: 361, easting: 721)
Coordinates:
  * easting         (easting) float64 6kB 0.0 0.5 1.0 1.5 ... 359.0 359.5 360.0
  * northing        (northing) float64 3kB -90.0 -89.5 -89.0 ... 89.0 89.5 90.0
Data variables:
    normal_gravity  (northing, easting) float64 2MB 9.801e+05 ... 9.801e+05

And plotted with pygmt:

import pygmt

fig = pygmt.Figure()
fig.grdimage(grid.normal_gravity, projection="W20c", cmap="viridis")
fig.basemap(frame=["af", "WEsn"])
fig.colorbar(position="JCB+w10c", frame=["af", 'y+l"mGal"', 'x+l"WGS84"'])
fig.show()
../_images/normal_gravity_5_1.png

Did you notice?

The calculations were performed at a non-zero height without the need for a free-air correction. That’s because method boule.Ellipsoid.normal_gravity implements the closed-form formula of [Lakshmanan1991] and [LiGotze2001] instead of the classic Somigliana equation. This allows us to calculate normal gravity precisely at any height above the ellipsoid without the need for a free-air correction, which is particularly useful for geophysics.

These calculations can be performed for any oblate ellipsoid (see Available ellipsoids). Here is the normal gravity of the Martian ellipsoid:

gamma_mars = bl.Mars2009.normal_gravity(latitude=latitude, height=10_000)

grid_mars = vd.make_xarray_grid(
    (longitude, latitude), gamma_mars, data_names="normal_gravity",
)

fig = pygmt.Figure()
fig.grdimage(grid_mars.normal_gravity, projection="W20c", cmap="lajolla")
fig.basemap(frame=["af", "WEsn"])
fig.colorbar(position="JCB+w10c", frame=["af", 'y+l"mGal"', 'x+l"Mars"'])
fig.show()
../_images/normal_gravity_6_1.png

Notice that the overall trend is the same as for the Earth (the Martian ellipsoid is also oblate) but the range of values is different. The mean gravity on Mars is much weaker than on the Earth: around 370,000 mGal or 3.7 m/s² when compared to 970,000 mGal or 9.7 m/s² for the Earth.

Assumptions for oblate ellipsoids

Normal gravity of oblate ellipsoids is calculated under the following assumptions:

  • The gravity potential is constant on the surface of the ellipsoid.

  • The internal density structure is unspecified but must lead to a constant potential at the surface.

Important: A homogeneous density ellipsoid does not satisfy the condition of constant potential at the surface. See [Karcol2017] for a thorough discussion.

Spheres#

Method boule.Sphere.normal_gravity performs the normal gravity calculations for spheres. It behaves mostly the same as the oblate ellipsoid version except that the latitude is a geocentric spherical latitude instead of a geodetic latitude (for spheres they are actually the same thing).

gamma = bl.Moon2015.normal_gravity(latitude=45, height=height)
print(gamma)

[162467.83654908 162447.05499056 162426.27741906 162405.50383356
 162384.73423306 162363.96861652 162343.20698292 162322.44933126
 162301.69566051 162280.94596965]

This is what the normal gravity of Moon looks like on a map:

gamma = bl.Moon2015.normal_gravity(latitude=latitude, height=10_000)

grid = vd.make_xarray_grid(
    (longitude, latitude), gamma, data_names="normal_gravity",
)

fig = pygmt.Figure()
fig.grdimage(grid.normal_gravity, projection="W20c", cmap="lapaz")
fig.basemap(frame=["af", "WEsn"])
fig.colorbar(position="JCB+w10c", frame=["af", 'y+l"mGal"', 'x+l"Moon"'])
fig.show()

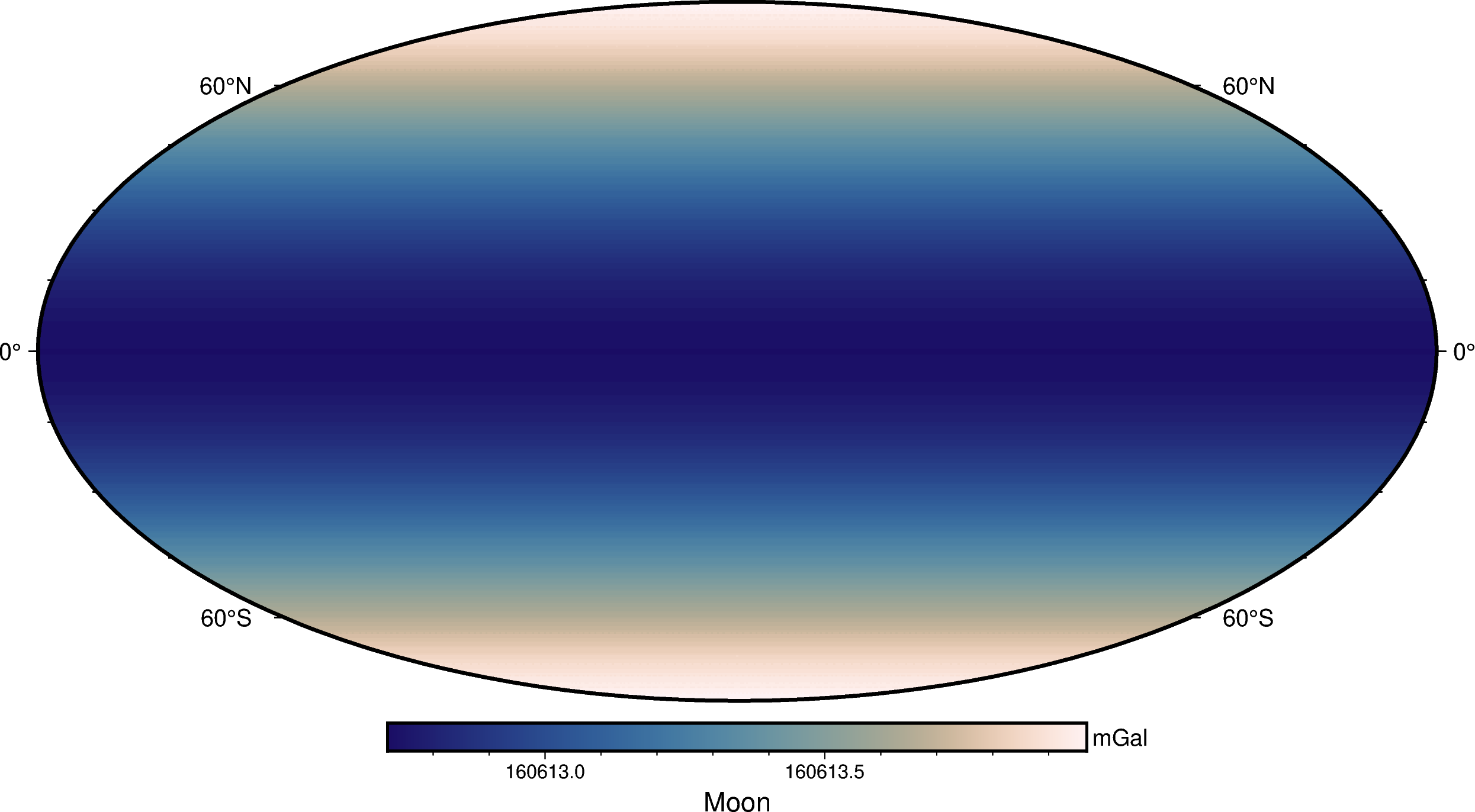

../_images/normal_gravity_8_1.png

Assumptions for spheres

Normal gravity of spheres is calculated under the following assumptions:

  • The normal gravity is the magnitude of the gradient of the gravity potential of the sphere.

  • The internal density structure is unspecified but must be either homogeneous or vary radially (e.g., in concentric layers).

A constant gravity potential on the surface of a rotating sphere is not possible. Therefore, the normal gravity calculated for a sphere is different than that of an oblate ellipsoid (hence why we need a separate method of calculation).

Gravity versus gravitation#

Notice that the variation between poles and equator is much smaller than for the Earth or Mars. That’s because the variation is due solely to the centrifugal acceleration.

We can see this clearly when we calculate the normal gravitation (without the centrifugal component) using boule.Sphere.normal_gravitation:

gravitation = bl.Moon2015.normal_gravitation(
    height=np.full_like(latitude, 10_000)
)
grid = vd.make_xarray_grid(
    (longitude, latitude), gravitation, data_names="normal_gravitation",
)
grid

<xarray.Dataset> Size: 2MB
Dimensions:             (northing: 361, easting: 721)
Coordinates:
  * easting             (easting) float64 6kB 0.0 0.5 1.0 ... 359.0 359.5 360.0
  * northing            (northing) float64 3kB -90.0 -89.5 -89.0 ... 89.5 90.0
Data variables:
    normal_gravitation  (northing, easting) float64 2MB 1.606e+05 ... 1.606e+05

Since there is no centrifugal acceleration, the normal gravitation is due solely to the mass of a sphere and depends only on the height above the sphere and not latitude.

Tip

For spherical bodies it can often be better to use boule.Sphere.normal_gravitation since services like the ICGEM offer the ability to generate grids of observed gravitation (without the centrifugal component).
